WED8000DW4 Parts List

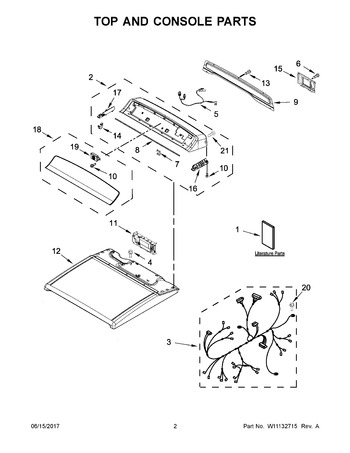

02 - Top And Console Parts
Click to enlarge diagram or right click to open in new window
Hover over In-Stock to see individual location availability
| Item # | Part # | Description | Price | Retail | Availability | Add to Cart |
|---|---|---|---|---|---|---|
| 1 | W10725269 | Installation Instructions | Call for Availability | |||
| 1A | W11089270 | Guide, Use And Care | Call for Availability | |||
| 1B | W11089260 | Tech Sheet | Call for Availability | |||
| 1C | W11089274 | Quickstart Guide | Call for Availability | |||
| 1D | W10901544 | Wiring Diagram | Call for Availability | |||
| 2 | W11050696 | Console Assembly (complete) (white) (Replaces: W10622070) | $99.72 | $99.72 |
CURRENTLY |
|
| 3 | W10901572 | Wiring Harness, Main | $171.33 | $171.33 | SPECIAL ORDER | |
| 4 | WP9740848 | Screw (Replaces: 9740848) | $4.59 | $4.59 |
CURRENTLY |
|
| 5 | W10837032 | Harness, User Interface | $110.41 | $110.41 | SPECIAL ORDER | |
| 6 | WP3390631 |
 Screw (Replaces: 3390631) |
$4.59 | $4.59 | IN-STOCK | |
| 7 | W11213336 | Nut, "u (Replaces: W10298336) | $4.45 | $4.45 | SPECIAL ORDER | |
| 8 | W11721376 | Seal, Console (Replaces: W10726632) | $4.45 | $4.45 | SPECIAL ORDER | |
| 9 | W10622402 | Panel, Rear Console | $67.35 | $67.35 | SPECIAL ORDER | |
| 10 | W11631670 | Screw (Replaces: 8281217) | $8.47 | $8.47 | SPECIAL ORDER | |
| 11 | W11133021 |
 Control, Electronic (Replaces: W11098430) |
$294.04 | $294.04 | IN-STOCK | |
| 12 | W11227373 | Top (white) (Replaces: W10508981) | $148.77 | $148.77 | SPECIAL ORDER | |
| 13 | W10704731 | Screw | Call for Availability | |||
| 14 | WP8312709 |
 Clip, Console (Replaces: 8312709) |
$12.12 | $12.12 | IN-STOCK | |
| 15 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) | $63.19 | $63.19 | SPECIAL ORDER | |
| 16 | W10631629 | Console Mount (right) | $95.48 | $95.48 | SPECIAL ORDER | |
| 17 | W10631630 | Console Mount (left) | $95.48 | $95.48 | SPECIAL ORDER | |
| 18 | W11133029 | Fascia (Replaces: W11098462) | $205.69 | $205.69 | SPECIAL ORDER | |
| 19 | W11123146 | Assembly, Speaker (Replaces: W10568405) | $50.66 | $50.66 | IN-STOCK | |
| 20 | W10850756 | Screw (Replaces: W10773242) | $4.59 | $4.59 | SPECIAL ORDER | |
| 21 | W10853898 | Screw (Replaces: W10219342) | $4.59 | $4.59 | SPECIAL ORDER | |
