WED8000DW4 Parts List

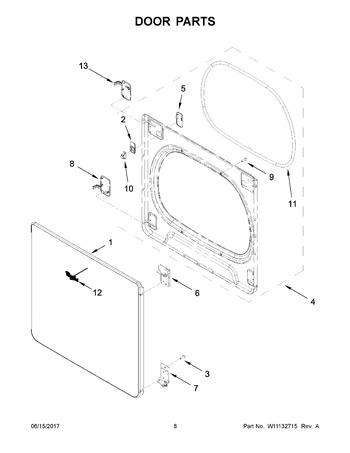

05 - Door Parts
Click to enlarge diagram or right click to open in new window
Hover over In-Stock to see individual location availability
| Item # | Part # | Description | Price | Retail | Availability | Add to Cart |
|---|---|---|---|---|---|---|
| 1 | W10614976 | Assembly, Outer Door (black) | $214.74 | $214.74 | IN-STOCK | |
| 2 | W11103932 | Bezel, Door Catch (white) (Replaces: W10631401) | $16.80 | $16.80 |
CURRENTLY |
|
| 3 | W10850046 | Screw (Replaces: 9742177) | $4.59 | $4.59 | IN-STOCK | |
| 4 | W11133036 | Assembly, Inner Door (white) (Replaces: W10915194) | $150.55 | $150.55 | SPECIAL ORDER | |
| 5 | W10631410 | Cover, Door Catch (white) | $56.87 | $56.87 | SPECIAL ORDER | |
| 6 | W10850024 | Door, Hinge (upper) (Replaces: W10783754) | $49.64 | $49.64 | SPECIAL ORDER | |
| 7 | W10850044 | Door, Hinge (lower) (Replaces: W10783755) | $49.64 | $49.64 | IN-STOCK | |
| 8 | W10631396 | Hinge Cover, Bottom (white) | $18.51 | $18.51 | SPECIAL ORDER | |
| 9 | WP488627 | Screw (Replaces: 342055) | $4.47 | $4.47 | SPECIAL ORDER | |
| 10 | W11429587 | Assembly, Door Catch (Replaces: W10610880) | $14.91 | $14.91 | IN-STOCK | |
| 11 | W10763835 | Seal, Door | $78.47 | $78.47 | SPECIAL ORDER | |
| 12 | WPW10393264 | Badge (grey) (Replaces: W10393264) | $41.77 | $41.77 | SPECIAL ORDER | |
| 13 | W10631395 | Hinge Cover, Top (white) | $17.46 | $17.46 | SPECIAL ORDER |
